Ultra Wear-Resistant And High-Strength Conveyor Belt
(Total 5 Products)
-
Unit Price:USD 38 / MeterMin. Order:100 MeterModel No:TT-UL004Ultra Wear-Resistant And High-Strength Belt Definition and General Description Ultra Wear-Resistant And High-Strength Conveyor Belt is a kind of belt that is designed to have outstanding wear resistance and high strength.High-Strength... -
Unit Price:USD 45 / MeterBrand:Iron TowerMin. Order:100 MeterModel No:TT-UL005Transportation:Ocean,LandPackaging:Month supply capacity of 50000 metersSupply Ability:Month supply capacity of 50000 metersPlace of Origin:ChinaProductivity:Month supply capacity of 50000Ultra high strength wear-resistant conveyor belt Ultra Wear-Resistant And High-Strength Conveyor Belt have a wide range of application scenarios. Some of the main ones are as follows: Mining Industry In underground and open-pit mines, Ultra... -
Unit Price:USD 35 / MeterMin. Order:100 MeterModel No:TT-UL003Flame retardant and super wear-resistant conveyor belt The characteristics of flame retardant and super wear-resistant conveyor belts are as follows: In terms of safety performance Excellent flame retardancy: This type of Ultra Wear-Resistant And... -
Unit Price:USD 46 / MeterMin. Order:100 MeterModel No:TT-UL002High wear-resistant and strong conveyor belt High wear-resistant and strong conveyor belts have numerous advantages, which are mainly reflected in aspects such as wear resistance, strength and stability. The specific advantages are as follows: ... -
Unit Price:USD 45 / MeterMin. Order:100 MeterModel No:TT-UL001Wear resistant and strong conveyor belt A wear-resistant and strong conveyor belt is a key component in material handling systems, designed to transport various materials efficiently and reliably. Here is a detailed introduction: Structure...
Engineered for Extreme-Duty Material Transport
Our Ultra Wear-Resistant and High-Strength Conveyor Belt redefines reliability in harsh operating environments. Combining advanced abrasion-resistant compounds with reinforced tensile cores, it delivers unmatched longevity under heavy-impact, high-tonnage conditions – from iron ore mines to cement kilns.
Technical Highlights
-
Ultimate Wear Resistance
-
Cover Compounds:
-
RMA Grade 1/2 abrasion-resistant rubber (≤70 mm³ @ DIN 53516)
-
Ceramic-Embedded Top Covers (optional) for severe abrasion zones
-
-
Abrasion Loss: ≤0.15 cm³/h (ISO 4649) – 3× industry standard
-
-
Superior Strength & Durability
-
Reinforcement:
-
steel cord (ST) – Tensile strength 630–6,300 N/mm (ISO 15236)
-
EP Fabric Plies – Up to 12,000 N/mm (ISO 283)
-
-
Impact Resistance: Reinforced with breaker fabrics (ASTM D7428)
-
-
Specialized Design Options
-
Heat Resistance: Up to 180°C (ISO 4195)
-
Fire & Anti-Static: K/MA/MSHA certified
-
Oil/Chemical Resistance: NBR compounds (ASTM D1460)
-
-
Extended Service Life
-
Cover Thickness: 8–30 mm (customizable)
-
Operating Lifespan: 2–5× longer vs. standard belts
-
Performance Specifications
| Parameter | Range | Standard |
|---|---|---|
| Tensile Strength | 800–6,300 N/mm (ST) | ISO 15236 |
| Belt Width | 500–3,200 mm | DIN 22102 |
| Top Cover Thickness | 10–25 mm (standard) | AS 1332 |
| Abrasion Loss | ≤90 mm³ (DIN) / ≤120 mm³ (ISO) | ISO 4649, DIN 53516 |
| Pulley Diameter | ≥800 mm (for ST-6300) |
Industry Applications
-

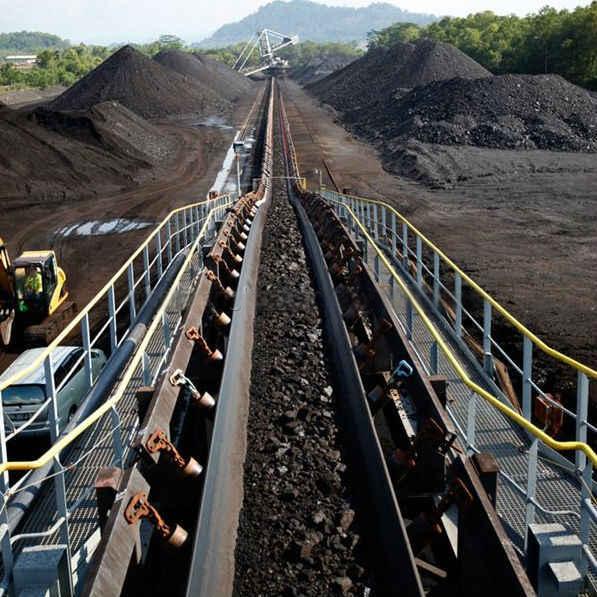

Mining: Iron ore, copper, coal (ROM/overburden)
-
Quarrying: Granite, limestone, aggregates
-
Steel/Cement: Sinter, clinker, slag transport
-
Ports: Ship loaders/unloaders, stacking systems
Competitive Advantages
✅ Cost Efficiency:
-
40% reduction in downtime & replacement costs
✅ Safety Compliance: -
Fire-resistant (EN 12882), anti-static (R≤300 MΩ)
✅ Custom Engineering: -
Edge protection, rip detection sensors, wear indicators
✅ Sustainability: -
Recyclable compounds, energy-saving low-rolling-resistance designs
Quality Assurance
-
-
Certifications: ISO 9001, MSHA, AS 1333 (fire)
-
Testing: Full-profile lab simulations (abrasion/impact/tension)
-
Warranty: 24–36 months (conditions apply)
-
Ultra Wear-Resistant And High-Strength Conveyor Belt
What are the main features of ultra wear-resistant and high-strength conveyor belts?
Performance refers to how quickly site content loaPerformance refers to how quickly site content loads and renders in a web browser.Performance refers Performance refers to how quickly site content loaPerformance refers to how quickly site content loads and renders in a web browser.Performance refers
What materials are usually used to make ultra wear-resistant and high-strength conveyor belts?
Commonly used materials include high-strength rubber, which provides good elasticity and wear resistance; high-strength fabric such as polyester and nylon as the skeleton material to enhance the tensile strength of the belt; and steel cord, which is often used in some high-strength requirements, can significantly improve the load-bearing capacity and tensile strength of the conveyor belt. In addition, some special additives may be added to the material to improve its wear resistance and other properties.
How is the wear resistance of such conveyor belts tested?
Performance refers to how quickly site content loaPerformance refers to how quickly site content loads and renders in a web browser.Performance refers Performance refers to how quickly site content loaPerformance refers to how quickly site content loads and renders in a web browser.Performance refers
