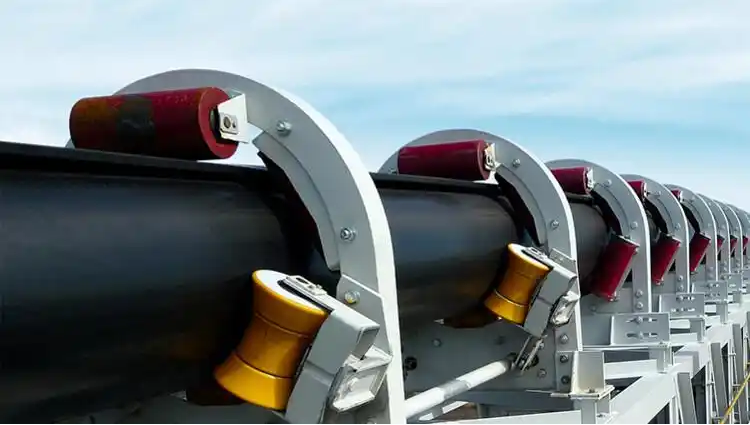

Introducing the Future of Clean Conveying: Our Tubular Conveyor Belt revolutionizes bulk material transport by forming a sealed tube around your product. Guided by idler rollers, the belt gently encloses material from loading to discharge, solving key challenges of traditional open systems.

Key Advantages:

1. Zero Spillage & Dust Control: Fully enclosed design eliminates material loss and contains dust – ensuring environmental compliance, safety, and product integrity.

2. Conquer Complex Layouts: Navigates steep inclines (up to 30°+) and tight horizontal curves with ease, reducing transfer points and saving space/cost.

3. All-Weather Protection: Shields materials from wind, rain, snow, and external contamination.

4. Gentle Product Handling: Minimizes degradation and segregation of fragile or valuable materials (e.g., grains, cement, biomass).

5. Lower Maintenance: Reduced spillage means cleaner operation and less wear.

Ideal For: Cement, coal, grains, biomass, fertilizers, chemicals, and other bulk materials where dust, space, or complex routing are concerns.

Technical Superiority in Action

Parameter	Polyester Model	steel cord Model
Tube Diameter	150-600mm	200-800mm
Max Slope Angle	30°	35°
Material Temp.	-25°C to +120°C	-30°C to +150°C
Belt Speed	≤5.0m/s	≤6.5m/s



Core Advantages



Why Choose Our Solution?

• Proven Performance: Reliable technology deployed globally.

• Significant Savings: Cut product loss, cleanup, and maintenance costs.

• Enhanced Safety & Compliance: Meet strict environmental and workplace standards.

• Ultimate Flexibility: Handle challenging inclines and curves efficiently.

• Customizable: Available in multiple diameters and belt compounds (fabric/steel cord, abrasion/heat/oil/food-grade resistant).

Optimize your material flow. Experience enclosed efficiency that protects your product, people, and bottom line.
