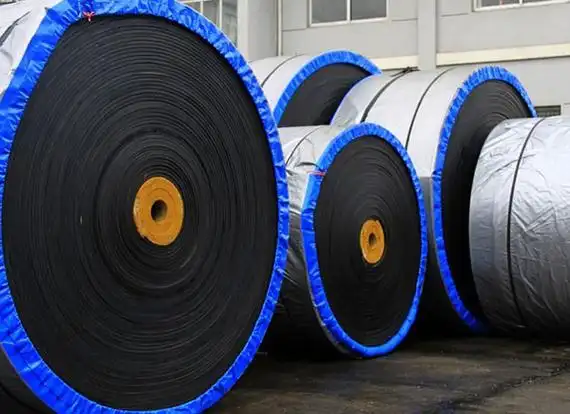

Conveyor Belt specifications are typically represented by several key parameters to clearly define their applicable scenarios and performance.
First, width: usually measured in millimeters (mm), such as 500mm, 800mm, 1200mm, etc., determined by the material flow rate and equipment space.
Thickness: includes the total thickness of the belt body, number of fabric layers, and thickness of the top and bottom cover rubbers, measured in millimeters, for example, top cover 4mm, bottom cover 2mm, total thickness 6mm, directly affecting the belt's wear resistance and load-bearing capacity.
Length: generally measured in meters (m), customized according to actual needs of the conveying line, such as 100m, 200m, etc.
Belt core material and structure: such as cotton canvas (CC), nylon canvas (NN), polyester canvas (EP), steel cable core (ST), different materials determine the belt's tensile strength and suitable environment, for example, ST type is suitable for long-span, heavy-load conveyance.
Tensile strength: measured in N/mm (newtons per millimeter), for instance, NN100 indicates a tensile strength of 100N per millimeter width, reflecting the belt's ability to withstand tension. Temperature resistance/strength grade: such as T1 (≤100℃), T2 (≤125℃), T3 (≤150℃), some special models may directly indicate the maximum tolerable temperature, such as 800℃, which is one of the key specifications distinguishing it from ordinary conveyor belts.
Based on these parameters, Kaifeng Tower Rubber (Group) Co., Ltd. summarizes that the typical method of representing conveyor belt specifications is 'production standard, length, width, belt core material, tensile strength, thickness, heat resistance temperature/strength grade'. It should be noted that specific specifications may vary between different manufacturers.The conveyor belt production expert by your side -- Kaifeng Tie Ta Rubber (Group) Co., Ltd.
