Chevron Conveyor Belts

Overview

Chevron Conveyor Belts are specially engineered conveyor belts featuring integrally molded, raised V-shaped cleats (profiles) on the carrying surface. These innovative belts are designed to overcome the limitations of standard flat belts, enabling efficient transportation of bulk materials on steep inclines (up to 40°) and preventing material rollback or slippage.

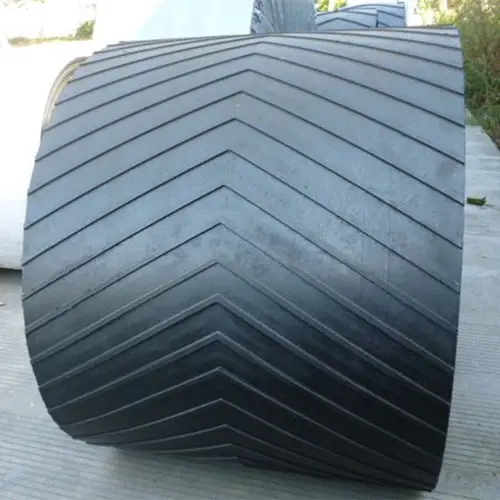

u=2133138472,1355114597&fm=253&fmt=auto&app=138&f=JPEG

Key Features & Benefits

Enhanced Incline Capability: Convey materials reliably at inclines from 15° to 40°, maximizing space utilization and reducing plant footprint.
Superior Material Stability: The cleated profile securely holds loose or granular materials (sand, grain, coal, ore, aggregate, fertilizer, etc.), minimizing spillage and waste.
Increased Loading Volume: Cleats create compartments, allowing higher load capacity compared to flat belts at similar speeds.
Reduced Slippage: Chevron patterns provide excellent grip on materials, preventing rollback even on wet or sticky loads.
Versatile Pattern Options: Available in various cleat heights (15mm, 25mm, 32mm, etc.) and spacings (Open V, Closed V, Multi-V, Super High Cleats) to match specific material characteristics and flow requirements.
Durable Construction: High-quality rubber compounds (Abrasion-Resistant, Oil-Resistant, Heat-Resistant) and robust fabric or steel cord carcasses ensure long service life under demanding conditions.
Smooth Transition: Cleats are designed to run smoothly over standard conveyor pulleys without excessive noise or wear.

Parameter	Description
Cleat Pattern2	Open V: Suitable for moderate slopes, easy to clean and maintain. Closed V: Provides more grip, used for steeper slopes or slippery materials. U - shaped: Designed for specific materials that require additional stability during transportation. Y - shaped: Used for high - angle slopes and handling bulkier materials.
Cleat Height2	Usually ranges from 6mm to 32mm. Higher cleats are used for steeper slopes and bulkier materials.
Belt Width2	Typically available in widths from 300mm to 2200mm to adapt to different conveyor system sizes and material volumes.
Belt Strength and Tensile Properties2	Strength grades range from 315N/mm to 2000N/mm, depending on application requirements. Higher strength grades are for heavy - duty applications such as mining and quarrying. The belt is designed to withstand the stress of transporting heavy materials on slopes without stretching or breaking.
Belt Material2	Rubber compounds: Usually made of high - quality rubber compounds, providing durability and resistance to abrasion, oils, and chemicals. Heat - resistant materials: Used in applications involving high temperatures, such as cement or steel plants, to prevent belt degradation.
Surface Finish2	Smooth finish: Suitable for materials that are not prone to sticking, ensuring easy movement. Rough finish: For materials that need additional grip to prevent slipping.
Working Temperature Range2	Standard belts typically operate within - 20 °C to + 60 °C. Specialty belts are designed to handle extreme temperatures for specific industrial applications.
Maximum Incline Angle2	Depending on the cleat pattern and height, it can handle incline angles from 15 ° to 40 ° to ensure that materials do not slide back.
Edge Type2	Cut edge Conveyor Belt: The standard edge for general applications. Moulded edge: Provides additional protection against edge wear and is used in more demanding environments.

Technical Specifications

Cleat Types: Common patterns include C15, C25, C32 (ISO/DPI standards indicating cleat height in mm).
Base Belt: Fabric (EP, NN) or Steel Cord (ST) carcass with top chevron cover and bottom smooth cover.
Cover Grades: Standard, HR (Heat Resistant), OR (Oil Resistant), AR (Abrasion Resistant).
Widths: Typically available from 300mm (12") up to 2200mm (87") or wider.
Cleat Angle: Usually 15°-45°, optimized for material flow.

Applications

Ideal for industries requiring efficient inclined conveying:

- Mining & Quarrying: Ore, coal, aggregate, rock.
- Agriculture & Grain Handling: Cereals, seeds, feed, fertilizer.
- Construction: Sand, gravel, cement, concrete.
- Recycling: MSW, wood chips, scrap metal.
- Power Plants: Biomass, coal, ash.
- Ports & Terminals: Bulk cargo loading/unloading.
- Chemical & Fertilizer: Granules, powders.

There are 5 products.

Diamond patterned conveyor belt

Unit Price:
USD 55 / Meter
Brand:
Iron Tower
Min. Order:
Meter
Model No:
TT-CC005
Transportation:
Ocean,Land
Packaging:
Month supply capacity of 50000 meters
Supply Ability:
Month supply capacity of 50000 meters
Place of Origin:
China
Productivity:
Month supply capacity of 50000

Diamond patterned conveyor belt A diamond pattern conveyor belt is a specialized Chevron Conveyor Belt with diamond-shaped patterns on its surface. The following is a detailed English introduction: Structure and Pattern Diamond-Shaped Patterns:...

Contact Now
Fan shaped patterned conveyor belt

Unit Price:
USD 55 / Meter
Brand:
Iron Tower
Min. Order:
Meter
Model No:
TT-CC004
Transportation:
Ocean,Land
Packaging:
Month supply capacity of 50000 meters
Supply Ability:
Month supply capacity of 50000 meters
Place of Origin:
China
Productivity:
Month supply capacity of 50000

Fan shaped patterned conveyor belt A Chevron Conveyor Belt is a specialized type of conveyor belt with sector-shaped patterns on its surface. The following is a detailed English introduction: Structure and Pattern Sector-Shaped Patterns: The...

Contact Now
Granular patterned conveyor belt

Unit Price:
USD 62 / Meter
Min. Order:
Meter
Model No:
TT-CC003

Granular patterned conveyor belt Convex Granular Chevron Conveyor Belt Features: Convex Granules: There are granular protrusions on the chevron Belt surface, which are usually circular or approximately circular. The size and height of the...

Contact Now
Herringbone patterned conveyor belt

Unit Price:
USD 66 / Meter
Min. Order:
Meter
Model No:
TT-CC002

Herringbone patterned conveyor belt Chevron Conveyor Belt is a type of conveyor belt with a distinctive "V" -shaped pattern on its surface. The main features and applications are as follows: Features Good anti-slip performance: The "V" -shaped...

Contact Now
Striped pattern conveyor belt

Unit Price:
USD 66 / Meter
Min. Order:
Meter
Model No:
TT-CC001

Striped pattern conveyor belt A striped pattern conveyor belt is a type of Chevron Conveyor Belt with stripe patterns on its surface that are higher than the belt body. The main features and applications are as follows: Features Pattern variety: The...

Contact Now
